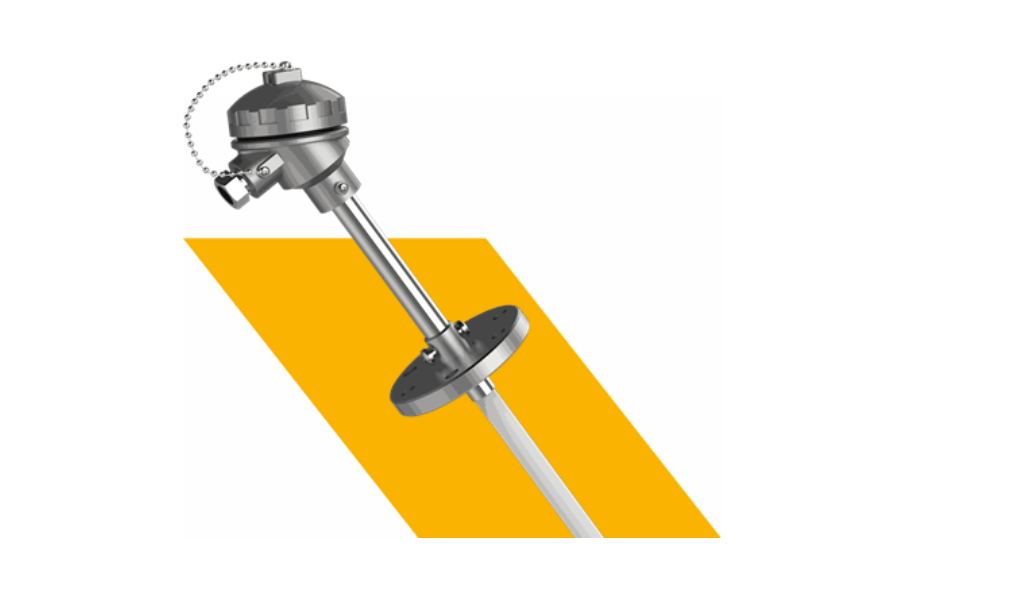

Thermocouple sensors are among the most prominent types of sensing devices used to measure temperature in different industries. They are chosen from various sensors like thermistors, semiconductors, and RTDs. Let us find out more about thermocouples in detail.
Knowing the Structure of Thermocouple Sensors
Thermocouples are temperature measurement sensors composed of two metal alloys that generate voltage. This voltage is directly related to the temperature variation among the thermocouple conductors. Each thermocouple sensor includes two ends – a measuring end and an electromotive force or EMF end. When there is a difference in temperature at the hot junction, a variation in EMF is produced at the cold junction. A controller notes this output EMF. The output EMF rises along with a growth in temperature.
Based on the application, different types of metals can be employed to generate the needed voltage. This lets the thermocouples provided in various calibrations fulfil different application temperature needs.
Benefits of Thermocouple Sensors
Many reasons show the prominence of thermocouple sensors among industrial clients:
-
Self-mechanised
As the output EMF grows as per the temperature variations, there is no requirement for an outer power source. Thus, thermocouples are self-powered in their operation.
-
Simple and Sturdy
In the sense of design, these sensors are easy yet powerful. They are manufactured with various high-strength metals, such as iron, aluminum, copper, and platinum. This lets the sensors be used in a number of industrial applications.
-
Affordable
Thermocouples are recognised to be affordable in the sense of price. When evaluated with RTDs, they are approximately three times less costly than RTDs.
-
Wide Range of Temperature
Thermocouples directly measure the temperature in an industrial application. They have the capacity to measure temperatures till 2600oC.
What are the Different Types of Thermocouples?
There are eight general types of thermocouples, each with specific properties.
-
Type B
It comprises Platinum (30% Rhodium) and Platinum (6% Rhodium) alloy. It has a high-temperature range between 1370 to 1700 °C, making it perfect for applications with very high temperatures, such as glass manufacturing.
-
Type E
This thermocouple includes Chromel and Constantan alloys. It possesses a lower temperature variation than type B (0 to 870 °C). They can be utilised in an inert surrounding, but they require to be safeguarded next to a sulphurous environment. These thermocouples are mostly utilised in power plants.
-
Type J
It consists of Iron and Constantan. It has a low-temperature variation of 0 to 760 °C. This kind of thermocouple is employed mainly in inert and vacuum surroundings. One of the most common uses is Injection moulding.
-
Type K
It is manufactured of Chromel and Alumel. It involves a temperature variation between 95 and 1260 °C. It is best matched for neutral or oxidising surroundings and is mostly utilised in refineries.
-
Type N
It uses alloys such as Nicrosil and Nisil. Its temperature variation is between 650 to 1260 °C. The specific point of this kind of thermocouple is that it provides high resistance to degradation because of green rot and hysteresis. Normally, it is used in petrochemicals and refineries.
-
Type R
It involves a combination of Platinum (13% Rhodium) and Platinum and has a temperature variation between 870 to 1450 °C. Because they are very accurate and stable, they are utilised in Sulphur recovery units.
-
Type S
It is a combination of Platinum (10% Rhodium) and Platinum. They involve a higher temperature variation between 980 to 1450 °C. Thus making them ideal for applications that use high temperatures.
-
Type T
It comprises Copper and Constantan. The temperature variation it has is between -200 to 370°C. It is perfect for inert and vacuum surroundings, making it best for cryogenics and food production industries.
Thermocouple Sensors Industrial Applications
The advantages of thermocouple sensors make it a perfect temperature-measuring tool for a number of industrial uses:
- Fog machines
- Electric arc furnaces
- Gas turbines
- Automotive diesel engines
- Industrial ovens
- Millivolt gas control systems
Selecting the Right Thermocouple Sensor for Your Industrial Application
In order to select an appropriate sensor for your measurement, it is essential to look at a number of factors, such as:
- What are the maximum and minimum temperature ranges you have to measure?
- What is your budget?
- What range of accuracy is required?
- What atmosphere will it be employed in?
- What is the required practical lifespan of the sensor?
- What is the needed response (how quickly must it react to temperature variations)?
- Will the thermocouple usage be constant or periodic?
- Will the thermocouple be uncovered to flexing or bending throughout its life?
- Will it be submerged in water, and to what extent?
Depending on the responses to these queries, it should be feasible to choose the best sensor for your industrial application.
Final Words
A thermocouple sensor can offer exact measurement rankings for industrial uses with intense temperatures. They are inexpensive, powerful, quick responding, and highly effective for several years to come. If you are looking for the best temperature sensor for your industrial applications, then do not forget to check the options available at Tempsens Instruments.
